An employee works in a large, well-lit warehouse and distribution center.

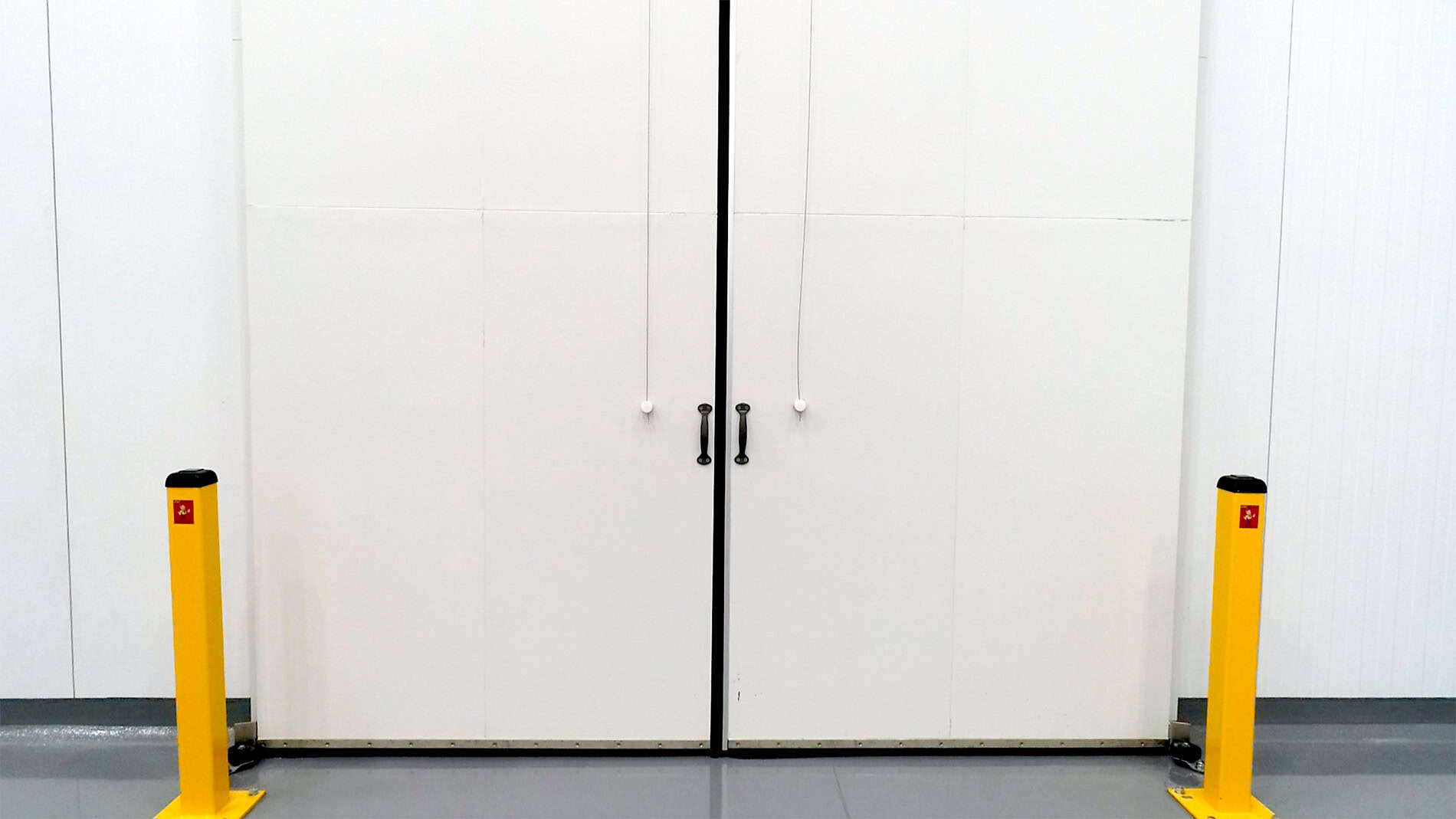

The front of a large cooler has two yellow safety bollards outside closed white metal doors.
A side view of a large cooler in a warehouse owned by Nippon Express.
Metal racks three rows high are against an interior wall in a warehouse.

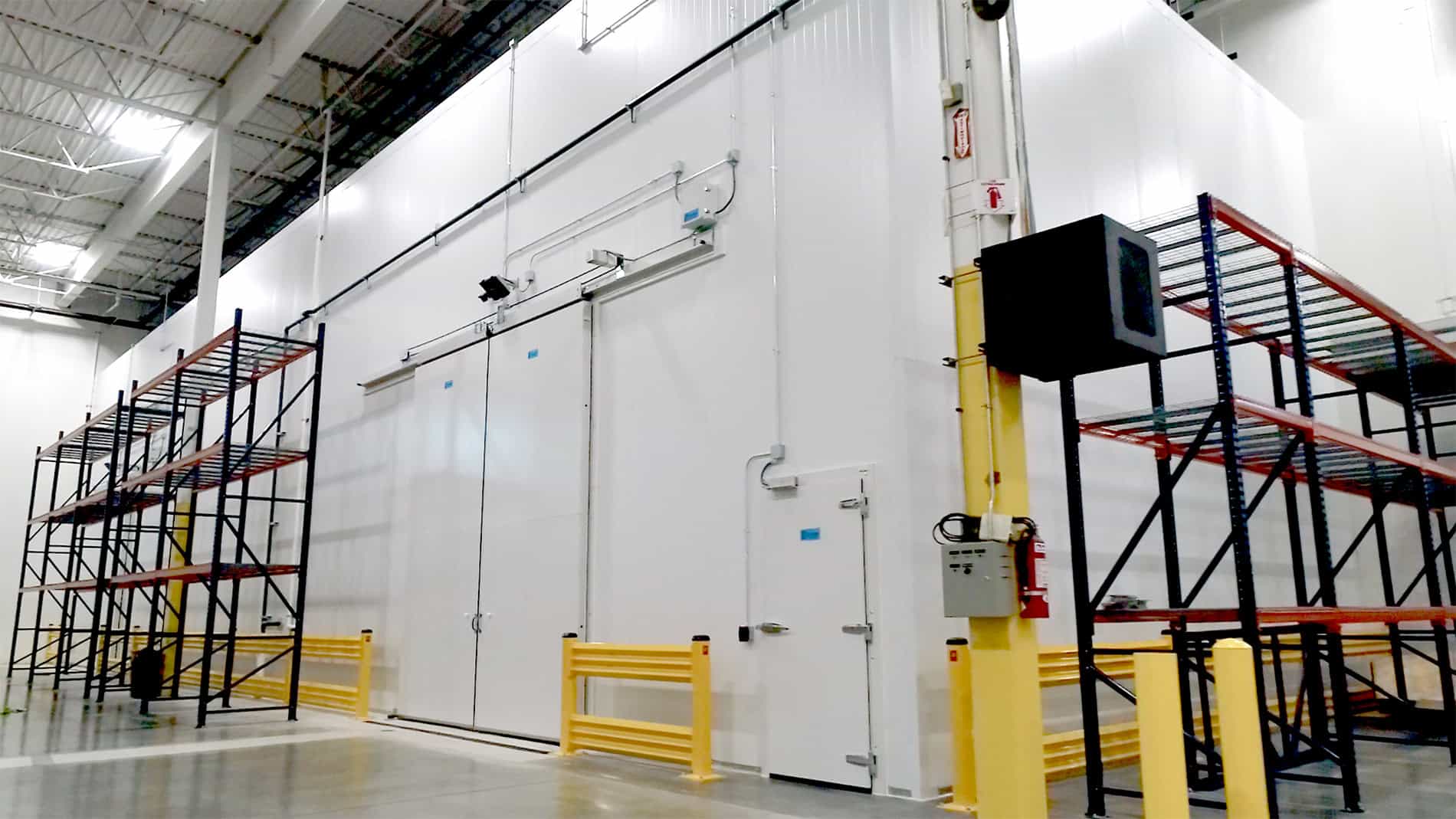

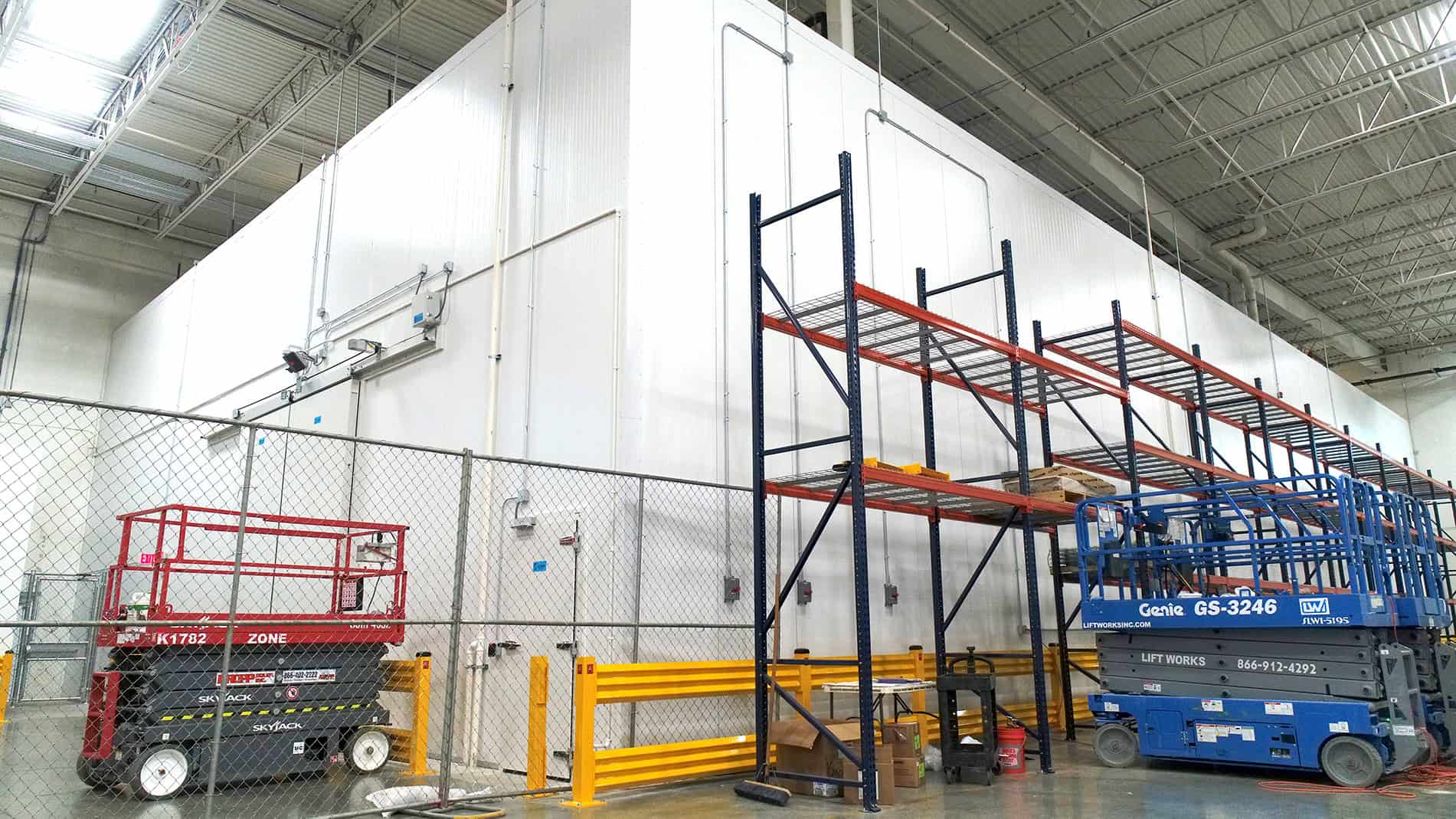

A Nippon Express warehouse has metal shelves and a forklift along the fenced outer walls of a GDP freezer and cooler.

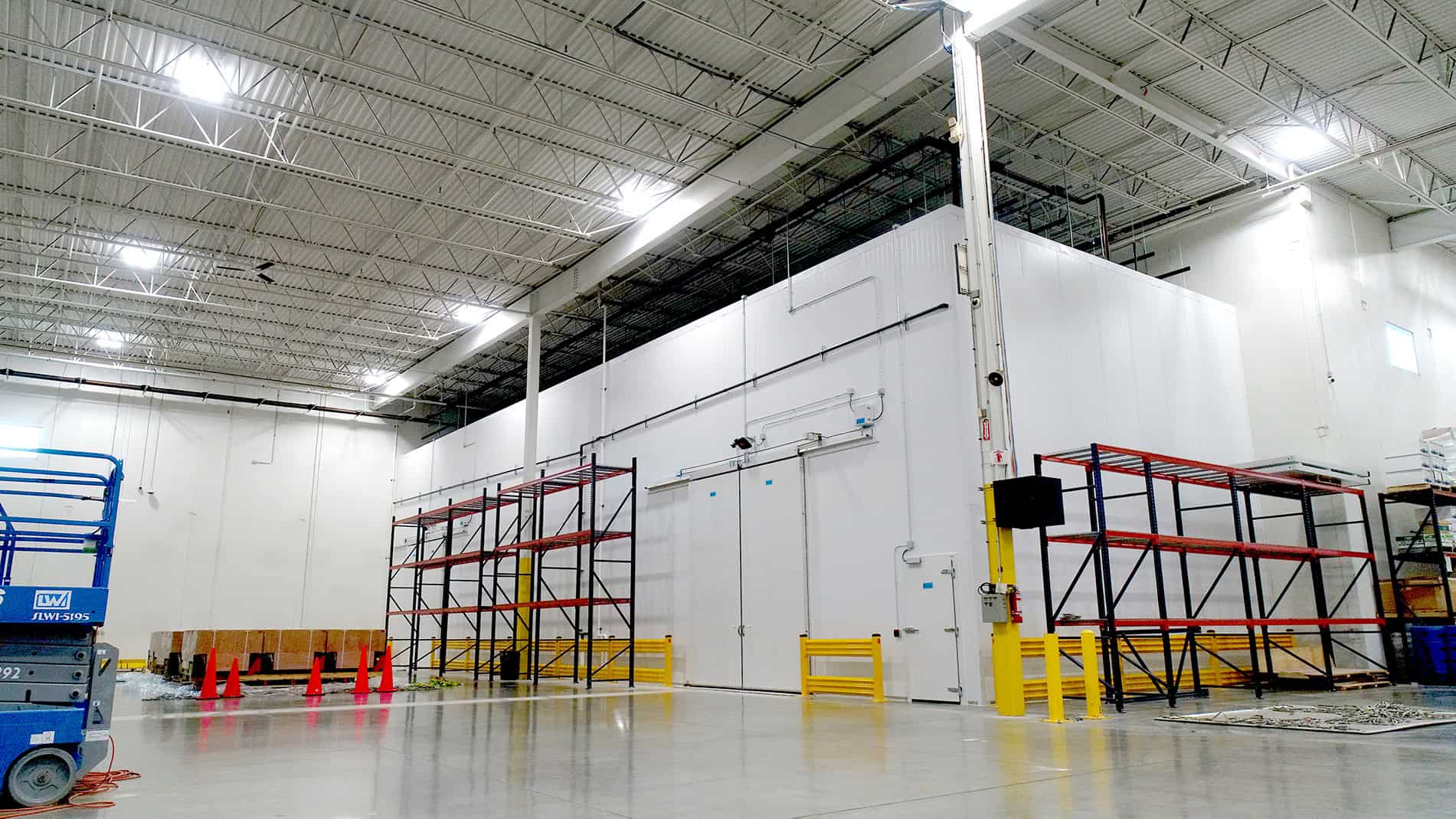

Metal shelves sit against a large white windowless room inside a well-lit warehouse. Keeley Construction made interior improvements, including pharmacological freezers and coolers.

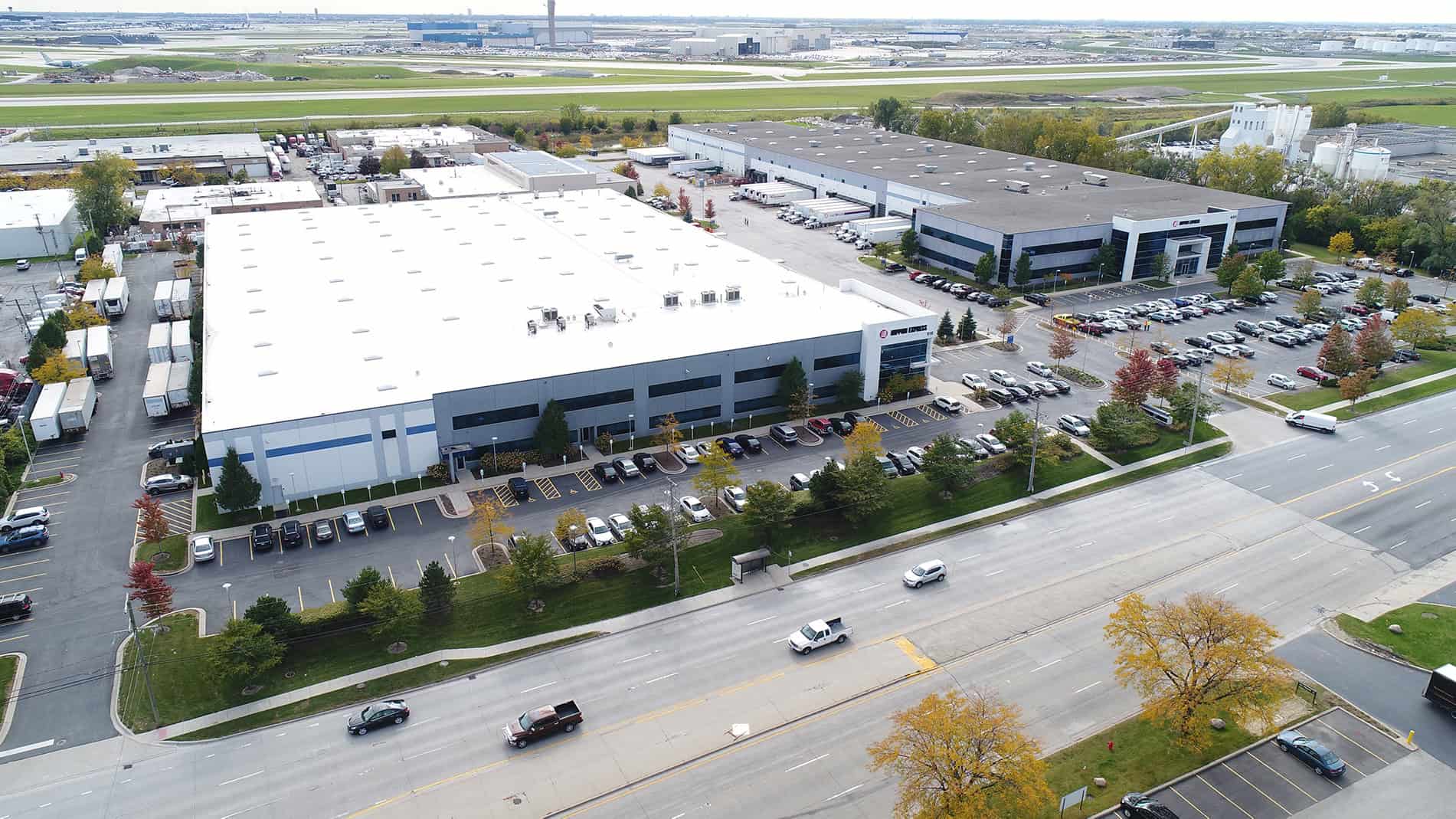

An aerial view of the Nippon Express campus shows a large, flat-roofed warehouse and side parking lot.

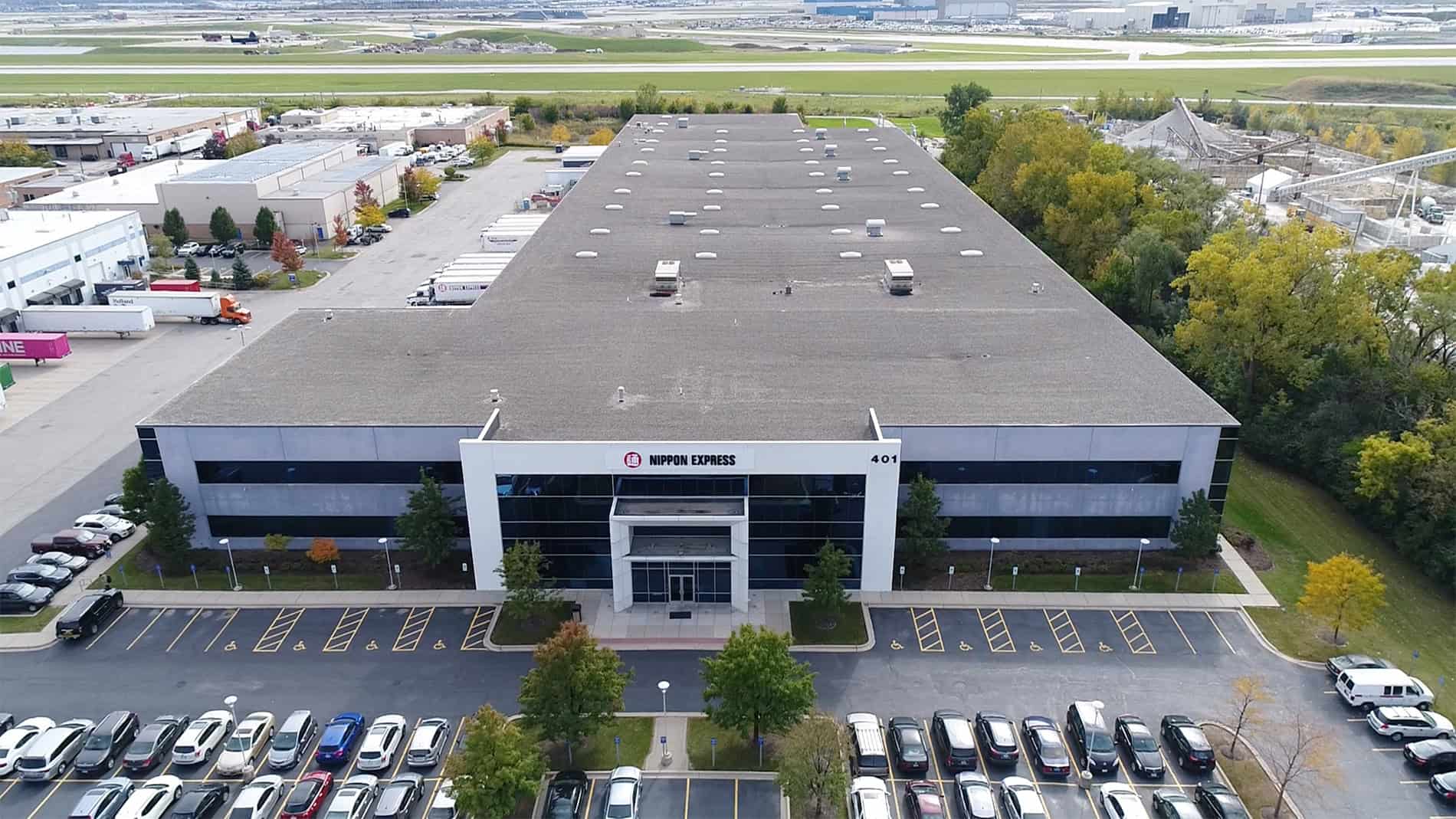

This is a distant bird' s-eye view of the entrance to Nippon Express and the front parking lot. The right side has a row of trees.

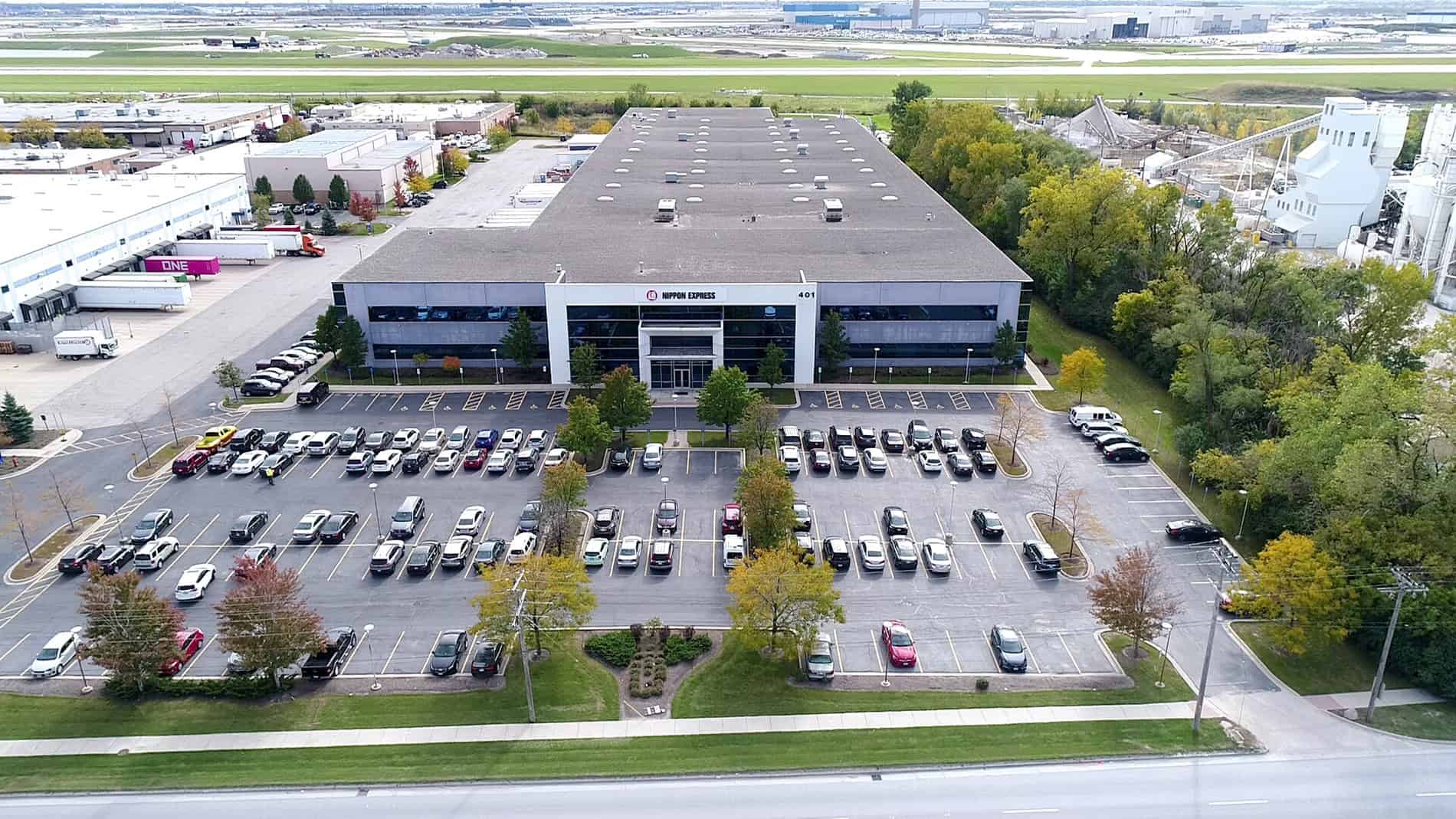

A close aerial view of Nippon Express shows their long, recently renovated building and a parking lot in front.

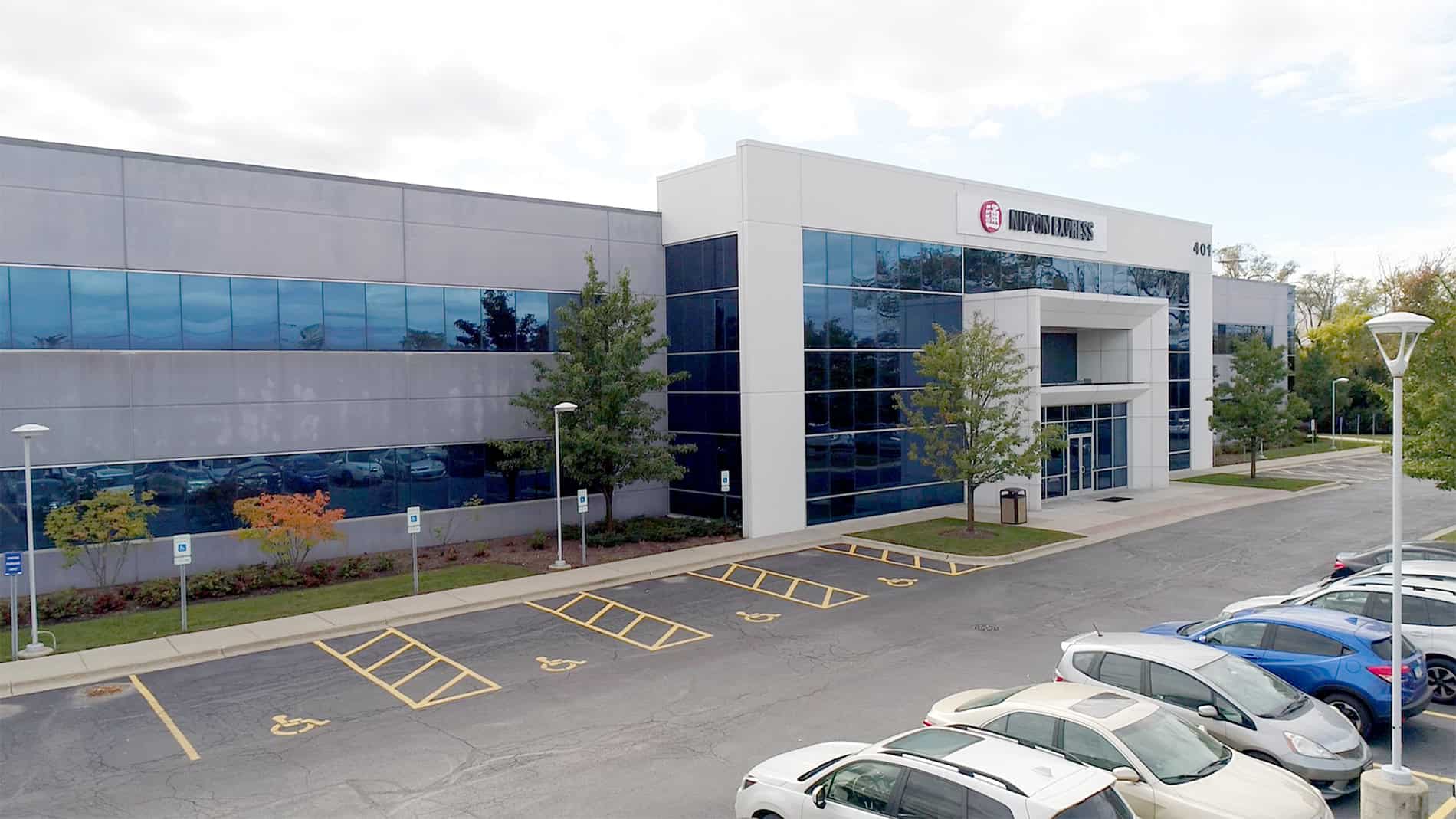

The office building and warehouse entrance has two rows of blue-reflective windows and ample parking in front.

Client

Nippon Express

details

Des Plaines, IL
9,773 SF

sectors

Nippon Express - GDP Coolers & Freezer

Interior tenant improvements consisting of a 2,903 square foot perishable cooler, 510 square foot GDP “good distribution practices” pharmaceutical freezer, 6,360 square foot GDP “good distribution practices” pharmaceutical coolers, 300 square foot GDP dock vestibule, 494 square foot cold chain management office and a 1,960 square foot exterior equipment pad. All work took place while existing operations continued.

Project Highlights

  • 9,773 Square foot GDP “Good Distribution Practices” pharmaceutical (4) Coolers & (1) Freezer.
  • 494 Square foot cold chain employee management office
  • USDA Governed Facility meeting all Government and Independent Auditor Requirements
  • GDP “Good Distribution Practices” certified
  • KE2 Thermal solutions “smart” refrigeration controls
  • “State-of-the-art” security system, monitoring system & employee access system
  • Climate controlled loading dock with inflatable dock seal & shelter
  • 16’-0” Storage Racking System throughout GDP Coolers & Freezer
  • Pharmaceutical secure trucker entrance
  • Thermostatically controlled underground heat at freezer
  • Eight (8) unit heaters inside GDP coolers to increase temperature turnaround
  • 26’-0” Clear Coolers
  • 16’-0” Clear Freezer
  • (2) Two 350kw backup generators.
  • (2) Forklift charging stations located inside TCWA GDP Cooler #103
  • All work took place while existing facility was in operation
